스마트 전력 반도체를 활용하여 자가소비 분산형 에너지를 만듭니다.

Smart Power Connectivity(SPC) IC for Automobile & Industries

Features
Items	Features
Function	Power Connectivity IC (DC 7~28V) with Smart Control
Chip size	2940um x 6850um (pitch = 3020um x 6930um / scribe = 80um)

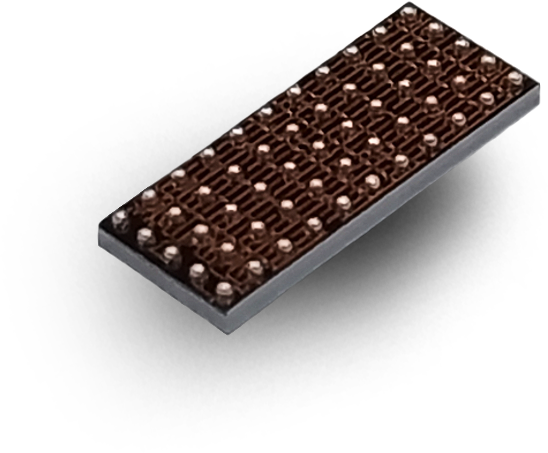

PKG Type	WLCSP (ball array : 5 x 11 = 55)
PKG Type	0.18um 1Poly 4Metal 60V BCD Process (SK hynix system ic)
Output	High-side Switch : max. 40A@DC 7~28V,Tj = 25℃ (RDSON < 4.5mΩ)
Power Input	AMX8040 : VPS = DC 28V max.
Internal Voltage	High-side Analog Circuit (AVDD / AVSS) AVDD to AVSS = 5 ~ 5.5V Low-side Analog Circuit (VDD / VSS) VDD to VSS = 5 ~ 5.5V Low-side Digital Circuit (VDDL / VSS) VDDL to VSS = 5 ~ 5.5V
OTP Programming Voltage	8.5V / Programming time = 450usec
Internal Clock Frequency	High-side Clock : 900kHz ± 100kHz Low-side Clock : 90kHz ± 10kHz
Operating Temperature	Tj = -40 ~ +140℃

Power switch with current sense diagnostic feedback for up to 54V DC grounded loads

Most suitable for loads with high inrush current like lamps and motors; all types of resistive and inductive loads

Replaces electromechanical relays, fuses and discrete circuits
